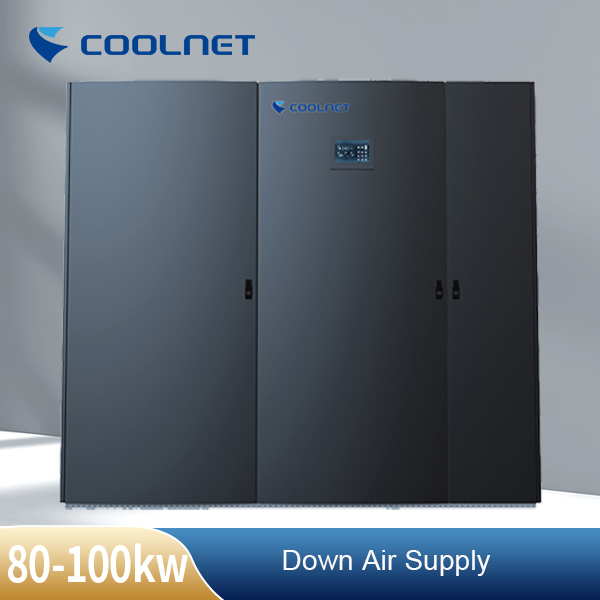

Direct Driven Fan Precision Air Conditioning System For Industrial Workplaces

Name: Direct Driven Fan Precision Air Conditioning System For Industrial Workplaces
Brand: Coolent
Price: 1 USD

China Direct Driven Fan Precision Air Conditioning System For Industrial Workplaces wholesale

Brand Name : Coolent

Model Number : CYA T80 T100

Certification : ISO/CE

Place of Origin : China

MOQ : 1

Price : to be Negotiated

Payment Terms : T/T

Supply Ability : 1000/Month

Delivery Time : 4W

Packaging Details : WOODEN

Type of AC : Precision air conditioning units( air cooled/water cooled/chilled water cooled） )

Mounting : Floor Standing

Application : Computer Room,Data Center, Libraries, Laboratories,Large Supermarket

Cooling capacity : 70-102KW

Condition : Brand New

Voltage : 380/400 VAC,230 VAC,220V

Warranty : 1 Year(12 month with no artificial damage)

Refrigerant : R22(R407C/R410A)

Color : Black/Grey/ White/Other custom colors

Airflow : Down Flow/Front flow/Upflow

Contact Now

Direct Driven Fan Precision Air Conditioning System For Industrial Workplaces

Product Introduction

Coolnetpower is one of the professional manufacturers in the refrigeration field. We have an excellent air conditioner R&D team and production line. The company's R&D department adopts advanced design concepts to design the PAC-CyberMaster series with the characteristics of high efficiency, energy saving, strong stability, long life and convenient maintenance.

Feature and Benefits

Direct Driven Fan Precision Air Conditioning System For Industrial Workplaces

Structure and Components

Compressor:

In the process of compaction, the direction of refrigerant airflow is not changed; the airflow loss is reduced; the scroll compressor does not need high and low pressure valves; the volume loss of the valve is reduced, and the patented dynamic and static scroll separation technology can effectively avoid liquid shock; launch The current is low. The energy efficiency ratio of similar compressors is the highest, reaching 3.4.

Fan:

Use the efficient and low-noise EBM backward tilt centrifugal wind motorized balance test to ensure long life, high energy efficiency, low energy consumption and low noise operation. Compared with equipment with the same air volume in the industry, the power consumption is the lowest.

Condenser:

The air-cooled condenser is made of marine grade corrosion-resistant materials, has outstanding rigidity and anti-corrosion functions, and is accustomed to various environmental conditions. Fully adjustable speed electric fans are used to achieve energy saving and low noise.

Air Supply Method

Technical Parameters

Model: CYA		S20D/U	S23D/U	S26D/U	S28D/U	S31D/U	S35D/U	S40D/U	S45D/U
Power Supply		380V 3Ph-50HZ
Air Discharge		Upflow/Downflow
Cooling Capacity :24℃/50%RH
Total Capacity	KW	20.5	23.5	26.8	28.3	31.5	35.5	40.2	45.6
Sensible	KW	18.9	21.6	24.2	26.1	28.9	33.2	37.6	42.2
AEER	w/w	3.7	3.6	3.6	3.7	3.7	3.7	3.7	3.6
Air Flow	m3/h	6830	7650	7580	8500	9200	9800	10600	12000
Compressor Hermetic scroll
Refrigerant		R407C
Compressor quantity	PC	1	1	1	1	1	1	1	1
Fan Section Centrifugal fan (Optional EC)
Fan quantity	PC	1	1	1	1	1	1	2	2
Rated current	A	2.5	2.5	2.8	3.2	3.5	4.1	4.4	4.9
Rated power	W	1050	1100	1200	1300	1320	2000	2150	2400
Reheat Capacity	KW	6	6	6	6	9	9	9	9
Reheat Material		PTC
Humidifier Section Electrode type
Capacity	Kg/h	5	5	5	5	5	5	5	13
Rated Current	A	6	6	6	6	6	6	6	15
Condensor Model		58	58	80	80	100	120	150	150

Certificates

Direct Driven Fan Precision Air Conditioning System For Industrial Workplaces

Factory Details

Direct Driven Fan Precision Air Conditioning System For Industrial Workplaces

Packing & Delivery

Case

Direct Driven Fan Precision Air Conditioning System For Industrial Workplaces
